LBCF4560

Product Features:

1the shell is made of aluminum alloy die-casting, anti-static surface anti-corrosion, anti-corrosion spray, with excellent dust, water, corrosion resistance;

2lamps and lanterns use up and down hollow convection ventilation design, so that the light source surface temperature rapid heat transfer to LED chip temperature balance, LED and power supply temperature reasonable control within 40 ° range, great guarantee lamp life;

3transparent parts to explosion-proof anti-glare standard After toughening, and the surface was honeycomb Ling Ling point uniform light without shadow anti-dazzling, transparent and matte two options;

4the bracket with gear bite design, non-slip earthquake, can be adapted to wind, vibration environment lighting operations.


Applicable Area:

1Widely used in oil exploration, metallurgy, military reserves, oil refining, oil tankers, shipyards, shipyards, oil extraction planes, workover rigs, drilling machines, mining, oil stations, oil depots, gas stations, Factories, steel, electricity, mining, and other dangerous environments;

2Suitable for Zone 1 and Zone 2 explosive atmosphere IIA, IIB, IIC environment, T1-T6 temperature group;

3For higher protection, wet places.


Technical parameters
Input Voltage AC100-240V 50/60Hz
Light Source LED
Exd ExdIICT6Gb
IP IP65
WF WF2
CRI ≥80
CCT 3000K-6500K
Holder G1/2






Order number Power Luminous(lm) Dimensions(mm)
LBCF4560-100 100W 12000lm φ356*209
LBCF4560-150 150W 18000lm φ356*209
LBCF4560-160 160W 19200lm φ415*238
LBCF4560-240 240W 28800lm φ415*238

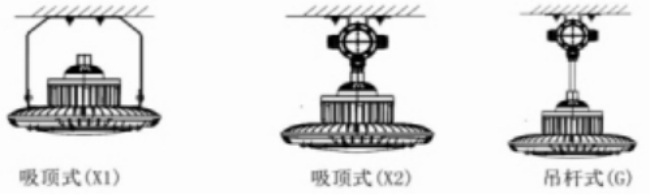

Order Notice:the common installation is stent .if need the other installation  ,pls noted.
