LGT8707

Product Feature

1.Use 5MM tempered glass lamp shade to prevent aging discoloration, a smooth matte finish, so that the light soft, not dazzling;

2.LED light source long life, energy saving than ordinary fluorescent nearly 50%, long-term stable operation without maintenance;

3.The utility model has the advantages of simple structure, small size, small weight, adjustable installation holes and convenient site installation;

4.In the case of mains access, the system begins to work and recharges the battery; an emergency starts automatically after the power is off, and the NiMH battery supplies power to the lamp;

5.In an emergency, the emergency time is not less than 90min;

6.Light body breathable valve design, to prevent the temperature rise of electrical appliances Sauna effect, to extend the service life.


Application Area:

1.Suitable for auxiliary lighting in harsh environment (waterproof, anti-corrosion, anti-vibration field);

2.Large port machinery (tire cranes, cranes, door hangers, bridge cranes, etc.) cab and walkway lighting;

3.Wind turbine (cabin, tower, wheel hub) of the interior lighting;

4.Ship roof and walkway lighting.


Technical parameters
Input Voltage AC100-240V/DC24V-DC48V  50/60Hz
Light Source LED
IP IP65
CRI ≥80
CCT 3000K-6500K
Working Temperature -30℃~+40℃

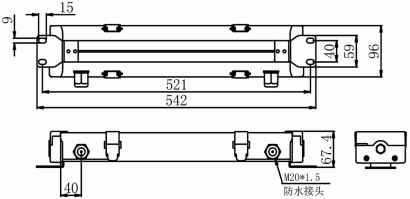

Order number Power Luminous(lm) Dimensions(mm)
LGT8707-17 17W 1700lm 542*96*68
