LZD7415



Product Feature:

1.Using high quality AL1070 material radiator, has a good cooling function;

2.The use of high transmittance PC lens, the light uniform and soft, light transmittance 92%;

3.A variety of angles, suitable for different occasions;

4.Use high-efficiency LED chip, constant current power supply design, good heat dissipation, LED luminous efficiency and service life.


Application Area:

For stadiums, squares, ports, airports, factories and mines, overpasses, crossroads and other high pole lighting.


Technical parameters
Input Voltage AC100-240V 50/60Hz
Light Source LED
IP IP65
CRI ≥80
CCT 3000K-6500K
Beam Angel 25°、45°、60°、60*140°

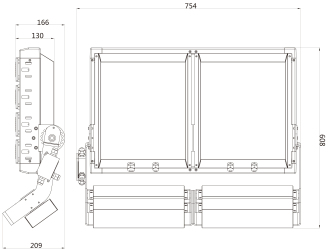

Order number Power Luminous(lm) Dimensions(mm)
LZD7415-300 300W 36000lm 516*388*209
LZD7415-400 400W 48000lm 608*418*209
LZD7415-500 500W 60000lm 700*418*209
LZD7415-600 600W 72000lm 516*754*209
LZD7415-800 800W 96000lm 608*754*209
LZD7415-1000 1000W 120000lm 700*754*209
Order Notice:the common light distribution is 60°.if need the other  light distribution   ,pls noted.
