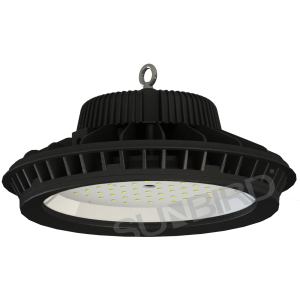

LCF9200

Application Area:
Suitable for industrial plants, workshops, warehouses, logistics centers, road toll stations, exhibition halls, stadiums and other lighting needs of the place


Product Feature:

1.Unique heat dissipation and light shell integration UFO UFO design, effective diffusion of heat conduction, thereby reducing the temperature of the lamp body to protect the life of the LED light source;
2. UFO-shaped design, smaller size, saving shipping costs;
3. Lamp surface using a special surface treatment process, the structure compact and beautiful, to IP65 standards. Corrosion, water, dust and good performance;
4 using high-power LED light source, with high efficiency power supply, compared with sodium lamp can save more than 60%, green pollution-free, non-polluting elements, the environment without any pollution;
5. Good color rendering, showing the real color more real, a variety of light color options, to meet the needs of different environments, eliminating the traditional high color temperature lamps or Low depression caused by sentiment, make the visual feel more comfortable and improve the working efficiency of workers;
6 constant current and constant voltage control, wide voltage (AC90V-260V) to overcome the ballast generated by the power grid, noise pollution and caused lighting instability,avoid the work to stimulate the eyes, fatigue.


Technical parameters
Input Voltage AC100-240V 50/60Hz
Light Source LED
IP IP65
CRI 80
CCT 3000K-6500K





Order number Power Luminous(lm) Dimensions(mm)
LCF9200-60 60W 7200lm Φ270*135
LCF9200-100 100W 12000lm Φ270*135
LCF9200-150 150W 18000lm Φ360*160
LCF9200-200 200W 24000lm Φ360*160
Order Notice:the common product with hanging installation,plead noted if require the other installation.
