LBCF4517

Product Features:

1the overall aluminum die-casting molding, anti-static surface to do anti-corrosion, anti-corrosion coating, with good dust, water, corrosion resistance;

2the use of cylindrical array of heat sink, and the earth to avoid the phenomenon of conventional LED heat sink will accumulate dust, the internal use of the internal array heat sink, the light source surface temperature quickly transmitted to the LED chip temperature equalization to ensure lamp life;

3anti-glare toughened transparent honeycomb-like Ling Jing crystal point, so that the light is uniform, no shadow, anti-acne.



Applicable Area:

1For explosion-proof high-ceiling plant lighting;

2Zone 1, Zone 2 for Class IIA, IIB, IIC and explosive gas atmospheres;

3T1-T6 group temperature group.


Technical parameters
Input Voltage AC100-240V 50/60Hz
Light Source LED
EXD ExdIICT6Gb
IP IP65
WF WF2
CRI ≥80
CCT 3000K-6500K
Holder G3/4



Order number Power Luminous(lm) Dimensions(mm)

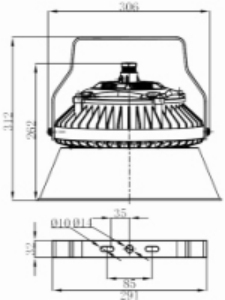

LBCF4517-100 100W 12000lm φ355*312
LBCF4517-150 150W 18000lm φ355*312

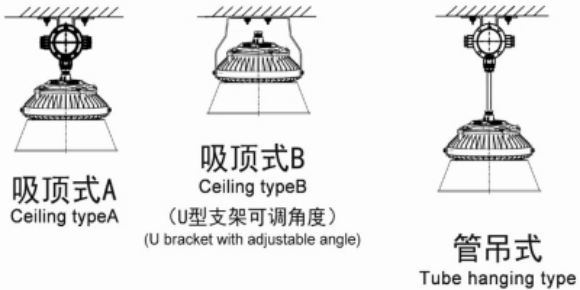

Order Notice:the common installation is stent .if need the other installation  ,pls noted.
