LBGT4960

Product Features:

1high-strength aluminum alloy shell and advanced surface coating process, corrosion grade WF2, in a variety of corrosive environment long-term reliable work;

2the use of advanced optics and lighting original design of the original optical lens and transparent parts, soft light, uniform illumination, effective control of glare, reducing staff visual fatigue;

3the use of LED energy-saving light source, heating element paste shell design, light source cavity and electrical separation design, effectively control the temperature rise of various components to extend the service life of LED and other electronic components to ensure long-term stable and reliable work lamps;

4light source cavity convex design to make efficient use of luminous flux, zero optical loss glow;

5small size, light weight, not only pocket beautiful, but also good seismic capacity, a variety of installation options to choose from, the use of different lighting needs of the scene.


Applicable Area:

1Suitable for inflammable and explosive places such as petroleum, chemical industry and ships;

2it is suitable for fixed lighting in workshops, installation areas, passageways, transfer stations, cabin of joint station, etc.


Technical parameters
Input Voltage AC220V 50-60Hz
Light Source LED
EXD ExdIICT6GB
IP IP65
WF WF2
CRI ≥80
CCT 3000K-6500K
Holder G1/2
Cable φ8mm-φ14mm


n

Order number Power Luminous(lm) Dimensions(mm)
LBGT4960-10 10W 900lm φ171*202
LBGT4960-20 20W 1800lm φ171*202
LBGT4960-36 36W 3240lm φ171*202

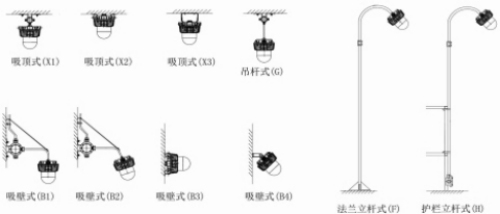

Order Notice:the common installation is hanging .if need the other installation  ,pls noted.
