Product Feature:

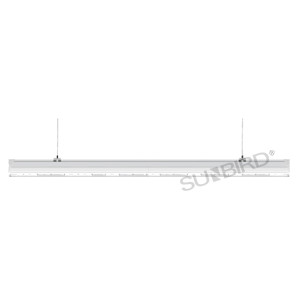

1.Structure: The system consists of a rail and a lamp body. The prefabricated cable, the lamp body and the rail, the rail and the rail in the rail are seamlessly connected through a connector to form an integrated lighting system;
2.Track & Circuit: The track has four lengths, each length has 5/7/11 line three kinds of specifications, of which 5 lines for power supply, 3 fires 1 and 1 to form three loops, the lamp body through the phase selection to access to different circuits beyond the 5-wire section for DALI control circuits and emergency lighting circuits;
3.Optical: four kinds of color temperature, two types of lens, seven kinds of light angle, low glare value, high significant index;
4.Extended functions: three dimming, three emergency, two sensor functions, patch rail as a standard connector, support for third-party module access system, support for external DALI system;
5.Tool-free installation, completed by splice connectors and adapters;
6.Personalization: Support customization.
Application Area:
Large-span industrial plants, large stores, multi-purpose venue and assembly line lighting and other places processing industries.
Technical parameters
Input Voltage
AC220-240V 50/60Hz
Light Source
LED
IP
IP65
CRI
≥80
CCT
3000K-6500K
Order number
Power
Luminous(lm)
Dimensions(mm)
Tunnel Dimensions(mm)
LFY6642-16
16W
1920lm
584*80*81
570*69*41
LFY6642-26
26W
3120lm
584*80*81
570*69*41
LFY6642-32
32W
3840lm
584*80*81
570*69*41
LFY6642-40
40W
4800lm
1430*80*81
1416*69*41
LFY6642-65
65W
7800lm
2846*80*81
2832*69*41
LFY6642-65S
65W
7800lm
1430*80*81
1416*69*41
LFY6642-80
80W
9600lm
2846*80*81
2832*69*41
LFY6642-80S
80W
9600lm
1430*80*81
1416*69*41
LFY6642-96
96W
11520lm
4262*80*81
4248*69*41
LFY6642-120
120W
14400lm
4262*80*81
4248*69*41
LFY6642-120S
120W
14400lm
2846*80*81
2832*69*41
Order Notice:1.the common colour is white .if need black,sliver ,pls noted. |
2.the common light distribution 60°.if need the other ,pls noted. |
