Product Feature:
1.Product light source cavity and electrical cavity separation, the effective control of the temperature rise of various components to extend the service life of LED and other electronic components to ensure long-term stable and reliable work lamps;
2.Shell using high-strength aluminum alloy die-casting molding, surface uniform spray treatment, anti-impact, corrosion-resistant;
3.Lamp housing protection class IP65, effective protection of your internal devices, to extend lamp life;
4.Small size, light weight, compact appearance, good seismic capacity and easy to install;

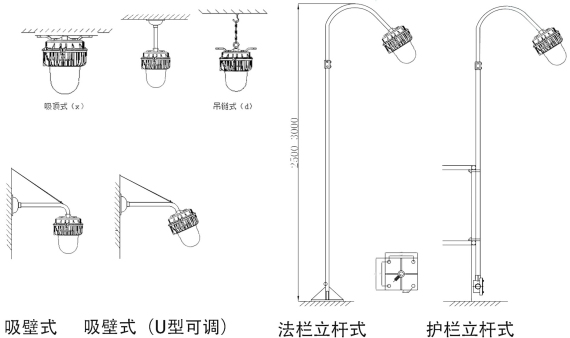

5.Products are ceiling, wall, hanging chain installation, to meet the installation needs of different sites, narrow ring with light distribution model due to the light positioning restrictions, only the ceiling, wall-mounted installation.
Application Area:
1.Products are narrow ring type and axisymmetric ring type two light distribution models, narrow ring type for non-non-hazardous places long and narrow lighting, such as non-explosion mine roadway, cable tunnel, equipment maintenance tunnel, a small walkway, corridor Road, etc .;
2.Axisymmetric ring illumination suitable for a small range of lighting, such as large equipment warehouse lighting, equipment, workstations and other local fill lighting.
Technical parameters | |
Input Voltage | AC90-305V 50/60Hz |
Light Source | LED |
Insulation level | I |
IP | IP65 |
WF | WF2 |
Cable | φ6mm-φ8mm |
Order number | Power | Luminous(lm) | Dimensions(mm) |

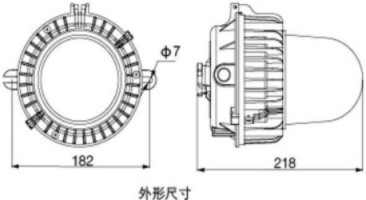

LGT8605-24 | 24W | 1920lm | φ182*218 |
