Product Feature:
1.Adopt unique technology and high-precision processing technology to manufacture, heat sink low thermal resistance, high heat flux to meet the COB cooling requirements;
2.Professional optical light distribution design, effectively improve the light efficiency of lamps and lanterns to meet the requirements of outdoor pole irradiation;
3.Radiator small size, light weight, high power, easy installation;
4.Protection level up to IP65, to meet a variety of harsh outdoor environments.
Application Area:
For outdoor billboards, marine fishing, airports, docks, cranes, bridges, TV towers, landmarks and other places.
Technical parameters | |
Input Voltage | AC100-240V 50/60Hz |
Light Source | LED |
IP | IP65 |
CRI | ≥80 |
CCT | 3000K-6500K |
Beam Angel | 15°、30°、45°、60° |

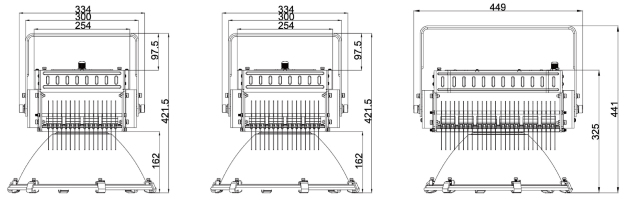

Order number | Power | Luminous(lm) | Dimensions(mm) |
LZD7421-200 | 200W | 20000lm | 395*275*447 |
LZD7421-250 | 250W | 25000lm | 395*334*421 |
LZD7421-300 | 300W | 30000lm | 395*334*422 |
LZD7421-400 | 400W | 40000lm | 401*401*440 |
LZD7421-500S | 500W | 50000lm | 395*449*442 |
LZD7421-500 | 500W | 50000lm | 508*508*530 |
